WAREHOUSE MORINHA_STU.DERE

Warehouse Morinha

stu.dere

Vila Meã, Amarante, Portugal

Project name: Warehouse Morinha

Office: stu.dere – Oficina de Arquitectura e Design

Architects: Ulisses Costa

Website: studere.pt

Mail: oficina@studere.pt

Facebook: https://www.facebook.com/stu.dere.oficina

Instagram: https://www.instagram.com/stu.dere

Location: Vila Meã - Amarante

Conclusion year: 2020

Build Area (m2): 334 m2

Client: Belo & Tavares, SA

Photographer: Ivo Tavares Studio

Website from the photographer: www.ivotavares.net

Facebook: www.facebook.com/ivotavaresstudio

Instagram: www.instagram.com/ivotavaresstudio

List of Manufacturers

1. Policarbonato Alveolar - Interior Walls

2. Birch Plywood – Interior Walls and Ceilings

3. Exporlux – Wall Lighting

4. Fonti by Fonte Barcelona – Ceramic switches – DO colection

5. Microcimiento - Microcement floors, Natural finish;

6. Welded Mesh – Metal separation mesh.

As if it was a game... so a new project started!

It was a sad and a empty place turned into a large light space and dynamically fitted, as a space for children should be.

In the first contact with the building, it was found a place too wanton in terms of space distribution.

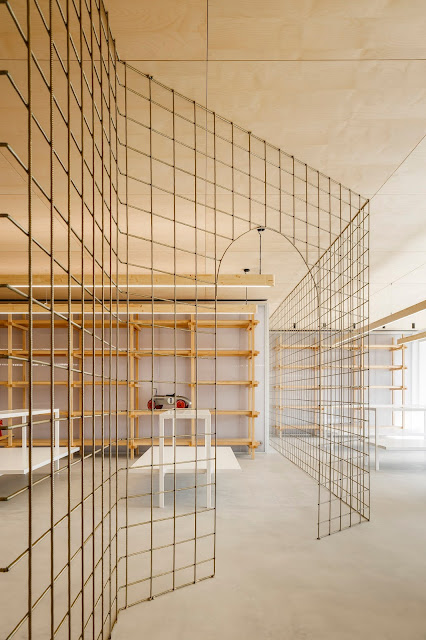

Despite the client's request for an open space concept, the intention was to create a sense of exploration as one walked through space, as though it were a labyrinth, like a game for a kid. Hence the

implementation of the wire mesh, which creates a physical but not visual barrier, thus fulfilling the client's premises.

In addition to the area devoted to displaying and storing the items, the ground floor includes an office and a small storage room. When accessing the upper floor, there is a studio for product photography.

This division was subdivided into two spaces with a glazing system, which were designed to expand

space.

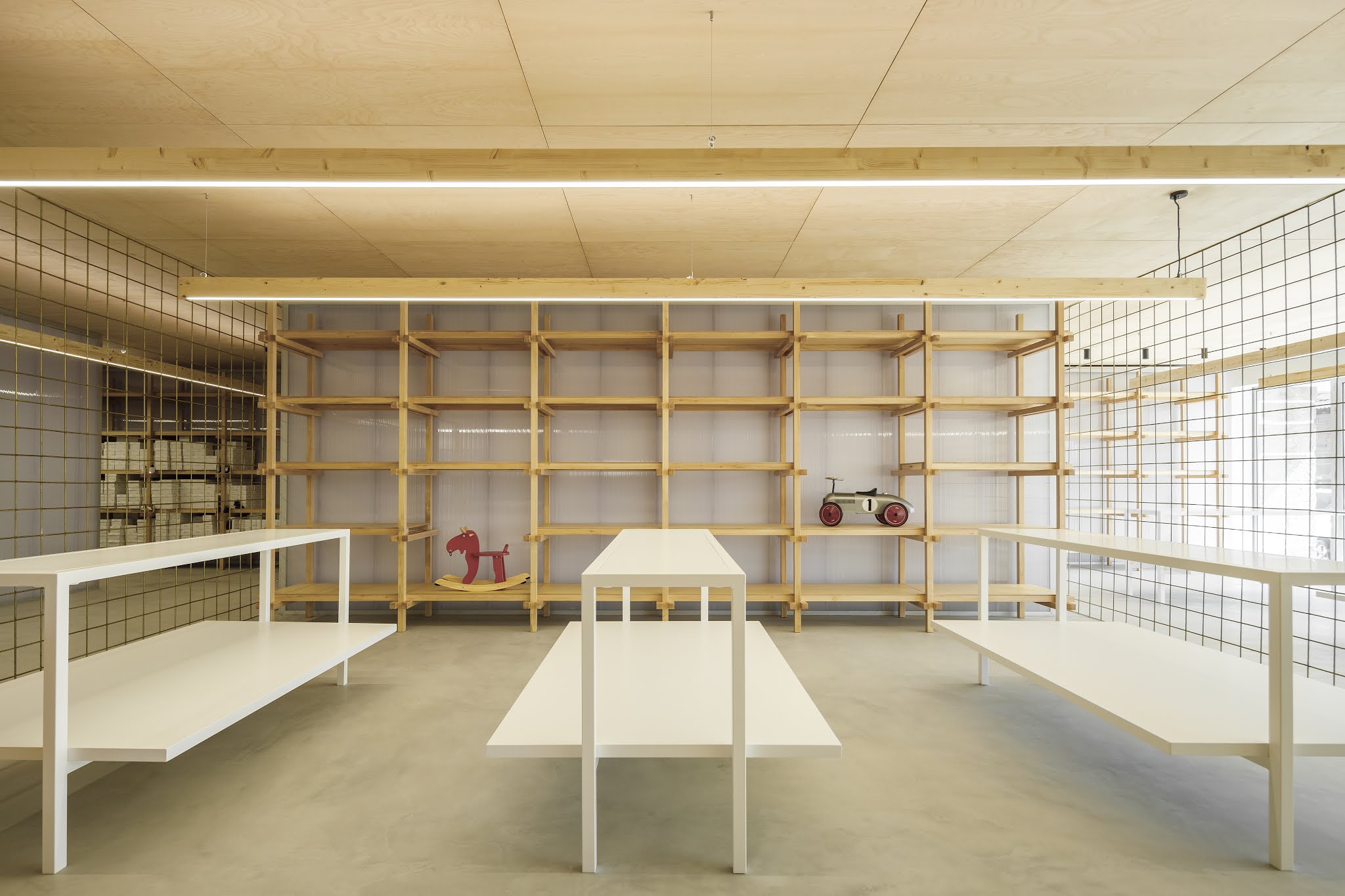

The materials used have been selected in such a way that their use is unique, without the need for adjacent layers and finishing with other products . Honeycomb polycarbonate has been chosen for the interior

walls, suggesting an industrial appearance in harmony with the microcement-coated floor. To counterbalance this, the ceilings and the office were lined with birch plywood, creating a more intimate

feel. This note has a regular metric that allows both the rhythm to be created and the organization of space, such as furniture layout, to be guided.

A small area dedicated to children was created next to the stairs to the upper floor. This playful space was covered with polycarbonate and with a double height, at which the lights of a design object fell. The lights reflected in the polycarbonate allude to a world of magic, imagination and creativity. The industrial style pendant lamp was designed specifically for the place.

Ground Floor

First Floor

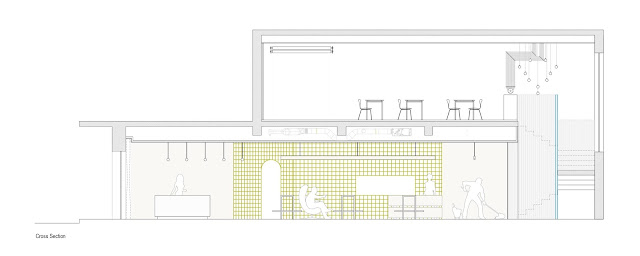

Cross Section

Structure

Work Table

Work Table

Perspective

Photographer: Ivo Tavares Studio

web stu.dere: https://studere.pt/
